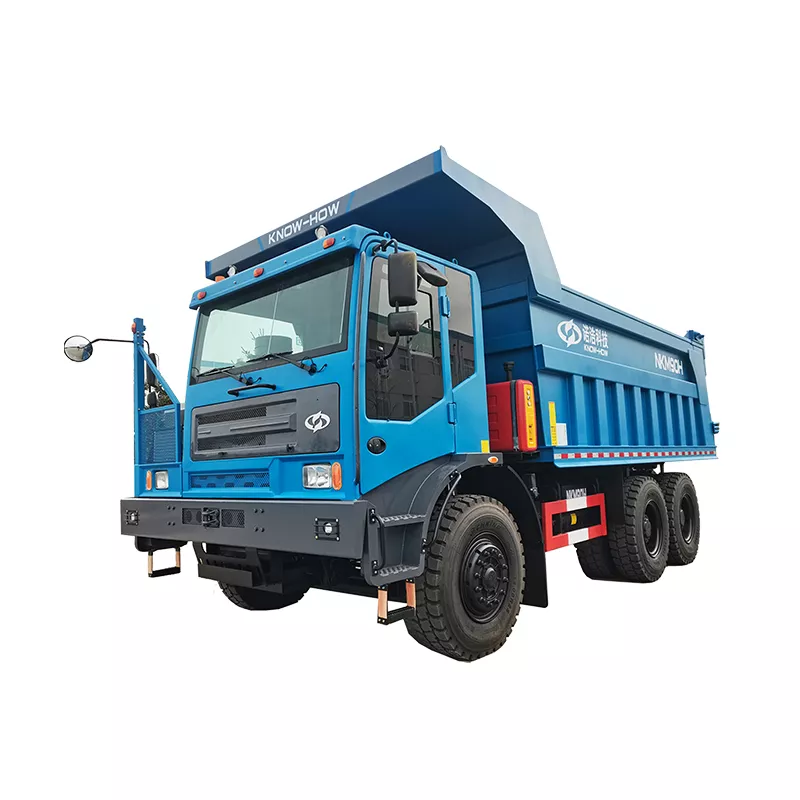

NKM90H diesel dump truck

NKM90H 90 tons,rated loading 60 tons,

420hp strong power,diesel mining dump truck

equipped FASTGEAR Mechanical automatic transmission 7DS220/MT

Product Parameters


Diesel Dump truck Parameters
Vehicle Spec.UnitNKM90H
Total Vehicle WeightKG90000
Rated Loading WeightKG59000
Tank Cubic VolumeCubic Meter33(Flat),36(Stack)
Axle Loading Front/Middle/Reart20+35+35
Engine Type/HorsePowerHpYC6K480-GT30(480hp)
Gearbox type/Faust 7DS220/MT(Mechanical Transmission)
Steering system/Full hydraulic steering
Suspension System(Front/rear)/Hydro-pneumatic spring/balance shaft general hanging
Braket System/Welded rigid tank frame /480x140
Vehicle Dimensionmm9100*3450*4130
Driven Type/6*4
Max Speedkm/h43
Min Turning Radiusm11.5
Vehicle Lengthmm9100
Front Middle Axle wheel basemm3800
Middle Rear Axle Wheel Basemm1560
Vehicle Heightmm4130
Vehicle Widthmm3450
Rear Wheel distancemm2526

NKM90H diesel dump truck

NKM90H Diesel Dump Truck Advantage


KNOW-HOW diesel dump truck typically refers to a dump truck powered by a diesel engine, rather than an electric vehicle. Diesel dump trucks are commonly used in industries such as construction, mining, and transportation for hauling materials such as sand, gravel, or demolition waste. They rely on diesel fuel to power their engines, providing the torque and power needed for heavy-duty tasks aims to create four core advantages of being safe,reliable,efficient and economical.
Diesel dump trucks are characterized by their powerful diesel engines, sturdy chassis, and durable cargo beds. They typically feature high payload capacities, advanced suspension systems, and ergonomic cabins for operator comfort and safety.

Applications of diesel dump trucks

Diesel dump trucks find applications in various industries, including construction, mining, agriculture, and waste management. They are used for tasks such as transporting aggregates, hauling excavated materials, and delivering construction materials to job sites.

NKE90C 350kwh electric dump truck


Being Safe


NKE90H 422kwh electric dump truck


The electronic control technology of KNOW-HOW has won the second prize of National Science and Technology Progress Award.

We use EV system with triple protections (protections against water, fire and electronic shock). We adopt design of high standard (“3S Safety Technology Requirements for New Energy truck”) to make it safer.

With diamond-enclosed-ring structure, the cab can be of high safety.


NKE90C 350kwh electric dump truck


Frame:We use box-shaped welded rigid frame for strong impact resistance and longer use of the chassis and auto parts.

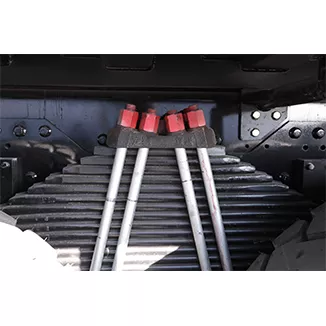

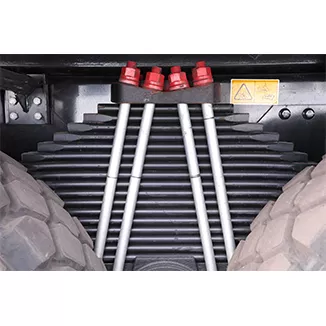

Leaf spring suspension:The overall matching strngth is high and the single piece of leaf spring is thick and strong, which can lower the failure rate and maintenance costs.


Hydro pneumatic suspension: It has great buffering and damping ability which is suitable for the complex road conditions in the mining area with low maintenance cost and high usage rate.


NKE90C 350kwh electric dump truck


Drive moto: It uses anti-condensation structure of KNOW-HOW to ensure the long-term reliable operation of vehicles in bad weather. It can reduce the maintenance, improve reliability and save use costs.


Integrated moto controller: With high level of integration and a few high-voltage connection points, it has redundant power supply to ensure the reliability.


EV system protection: The level of EV system protection is IP68+IP6K9K. It functions well after jetting by the hydraulic giant of high temperature and high pressure, which has achieved the top level around the world.


Being Efficient


The diesel dump truck has a large volume so that a single transportation is highly-efficient, which gurantees greater benefits. The warranty period of the vehicle's core components is long and the EV system is stable. So the vehicle can be used frequently.


NKE90C 350kwh electric dump truck


Being Economical


The diesel dump truck has a large volume so that a single transportation is highly-efficient, which gurantees greater benefits. The warranty period of the vehicle's core components is long and the EV system is stable. So the vehicle can be used frequently.


NKE90C 350kwh electric dump truck


Steering:The steering system (ball stud) uses the biggest taper pin or cotter pin in the industry. It’s reliable and has long service life.


Cab:The cab can be turned over which is convenient for maintenance.


Radiator:The cab can be turned over which is convenient for maintenance.The radiator area is large and it has strong climate adaptability. The radiator is detachable for low maintenance cost.


NKE90C 350kwh electric dump truck


The maximum efficiency of the high-efficient motor system (motor and motor controller) is equal to or greater than 96%, which plays a leading role in the industry.


It uses the improved regenerative braking energy recovery design. When the diesel dump truck is coasting or braking, the drive moto works as the generator to generate electric for battery charging, which achieves the braking energy recovery.


Know-How offers more than just fuel dump truck; our lineup includes electric Dump Trucks, Excavators, and more. Choosing Know-how means choosing versatility, reliability, and innovation for all your heavy equipment needs! Contact us right now!
